TL;DR:
- French Drains: Manage waterlogged areas ($1,000 – $5,000)
- Surface Drains: Redirect surface water, prevent erosion ($500 – $3,000)
- Trench Drains: Capture surface water on flat areas
- Dry Wells: Support flood control, manage runoff
- Gutter Systems: Direct rainwater from roofs ($1,000 – $2,500)
Installation Time: Each system takes 1 day to 2 days; gutter systems take a few hours.
Common Issues: Hydrostatic pressure, surface water issues, clogged drains, poor slope.
Professional Installation Benefits: Proper setup, utility navigation, warranties, and maintenance.
Got water pooling or soggy spots in your yard? Don’t ignore it—these issues can seriously damage your home and landscape. It’s important to optimize your property’s water flow with a good exterior drainage system. In this post, we’ll look at different types of drainage systems, like French drains, surface drains, trench drains, dry wells, and gutters, that can keep your property dry and prevent water damage. Understanding how each system works will help you protect your home and boost its value.
Types of Exterior Drainage Systems
Picking the right drainage system is key to managing water flow and keeping your property safe. Here are some common types of exterior drainage systems and how they work:

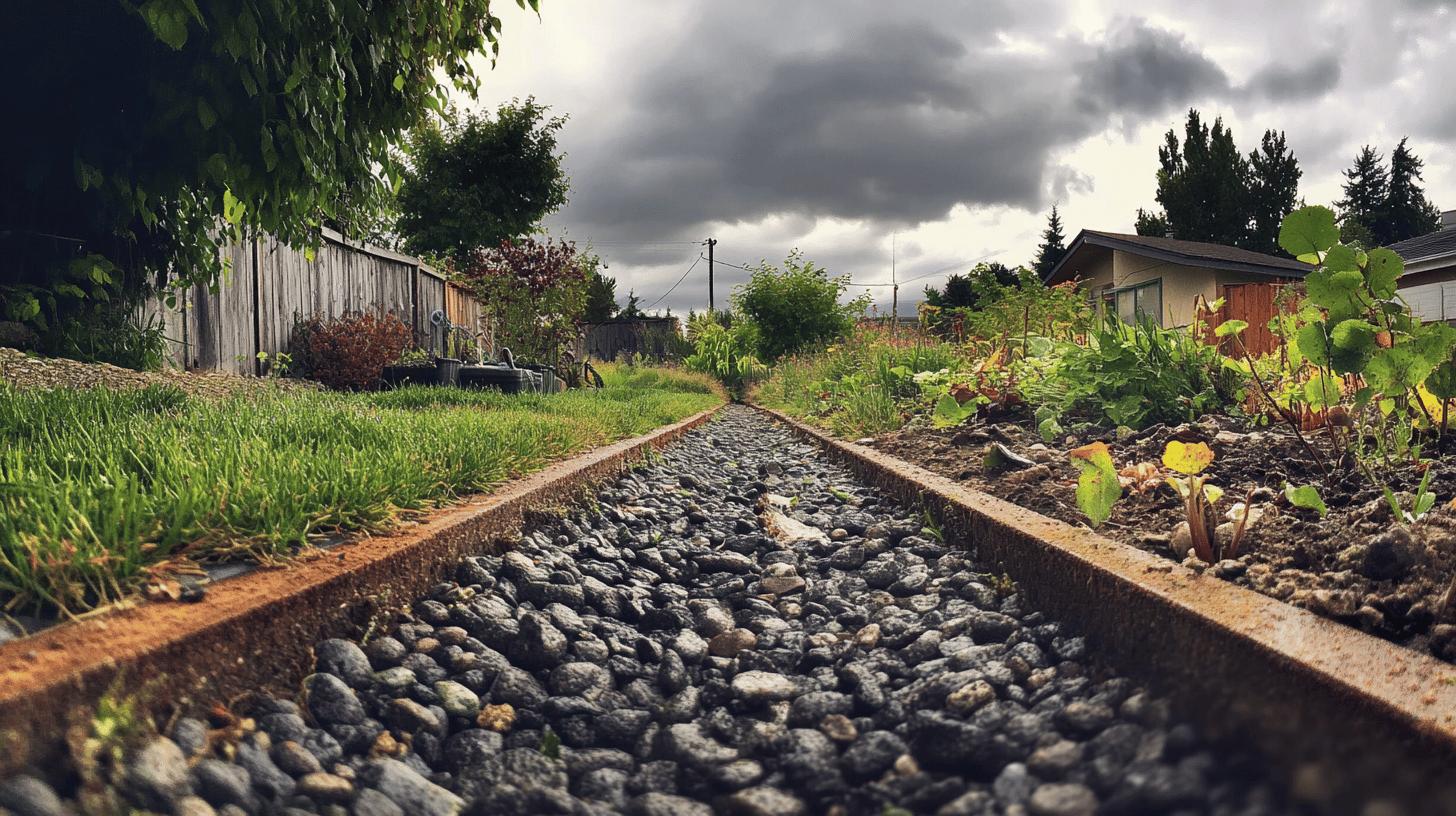

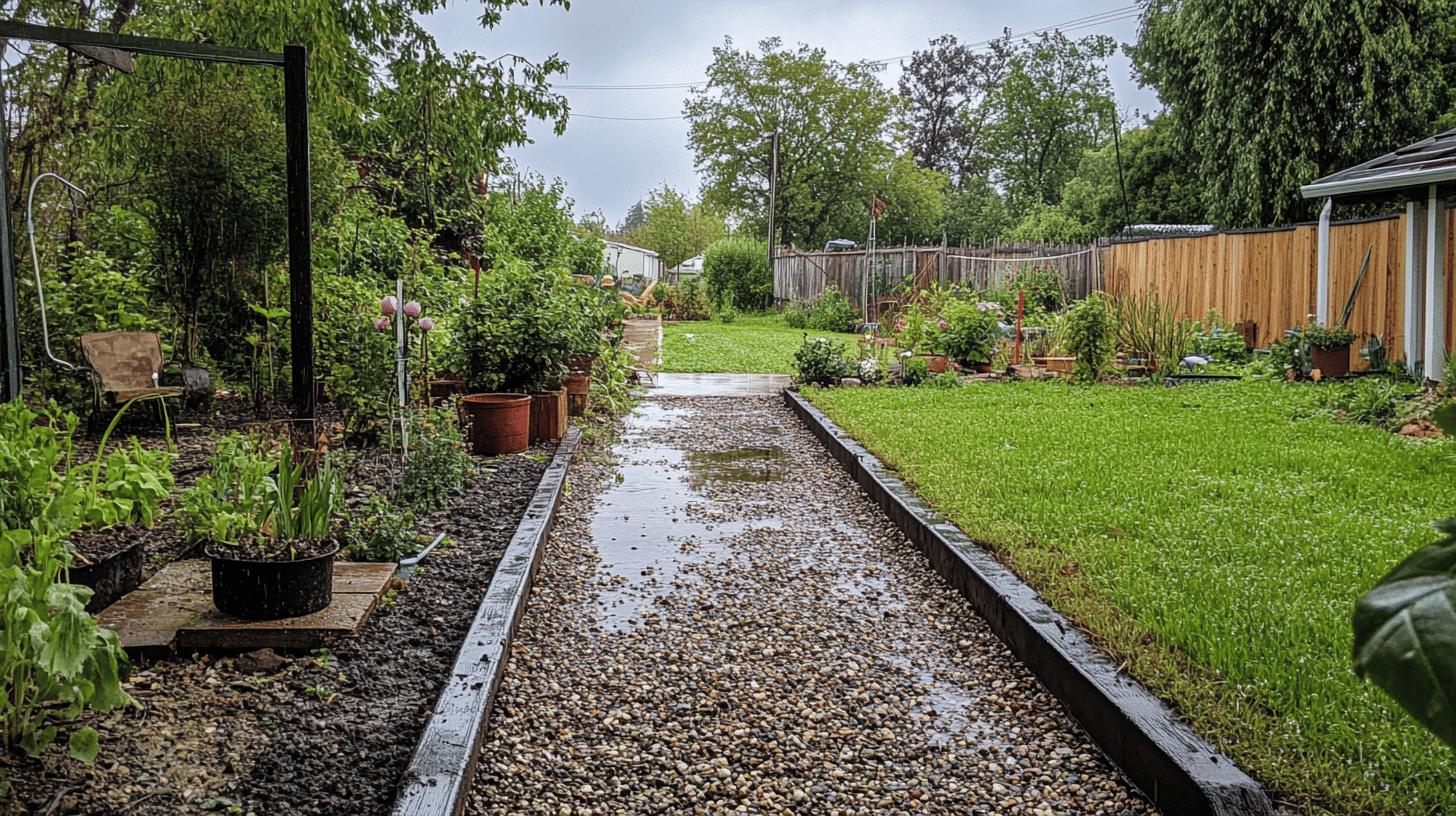

French Drains
French drains are a great solution for dealing with waterlogged spots. They consist of a trench filled with gravel or rocks and a perforated pipe wrapped in fabric. This design lets water flow through the gravel and into the pipe, helping to redirect it away from trouble spots. French drains work well in areas with bad soil drainage or where flooding happens often.
Surface Drains
Surface drains are designed to collect and redirect water using shallow channels or basins covered with grates. They effectively remove excess surface water and help prevent soil erosion. You’ll often find surface drains in places that experience heavy rainfall or where water tends to pool, like driveways, patios, and walkways.
Trench Drains
Trench drains, also called linear or channel drains, are long, narrow trenches with removable grates. They do a great job of managing surface water by capturing and redirecting it along driveways, pool decks, and other flat areas. This helps prevent water from pooling and causing damage in those spots.
Dry Wells
Dry wells are underground structures packed with porous materials that let water seep into the ground. They’re great for controlling floods and managing water, especially where surface runoff is a problem. By directing water into a dry well, you can lower the chances of flooding and protect your property from water damage.
Gutter Systems
Gutter systems handle rainwater from your roof and guide it away from your house. By extending downspouts and using the right drainage methods, these systems keep water from pooling around your foundation, which helps prevent basement flooding and structural damage.
| Drainage Type | Use |
|---|---|
| French Drains | Address waterlogged areas |
| Surface Drains | Efficient water removal, prevent soil erosion |
| Trench Drains | Effective surface water management |
| Dry Wells | Flood control, water management |
| Gutter Systems | Rainwater management from the roof |
How to Install an Exterior Drainage System
Installing an exterior drainage system the right way is key to managing water and protecting your property. Here’s a simple step-by-step guide for various systems:

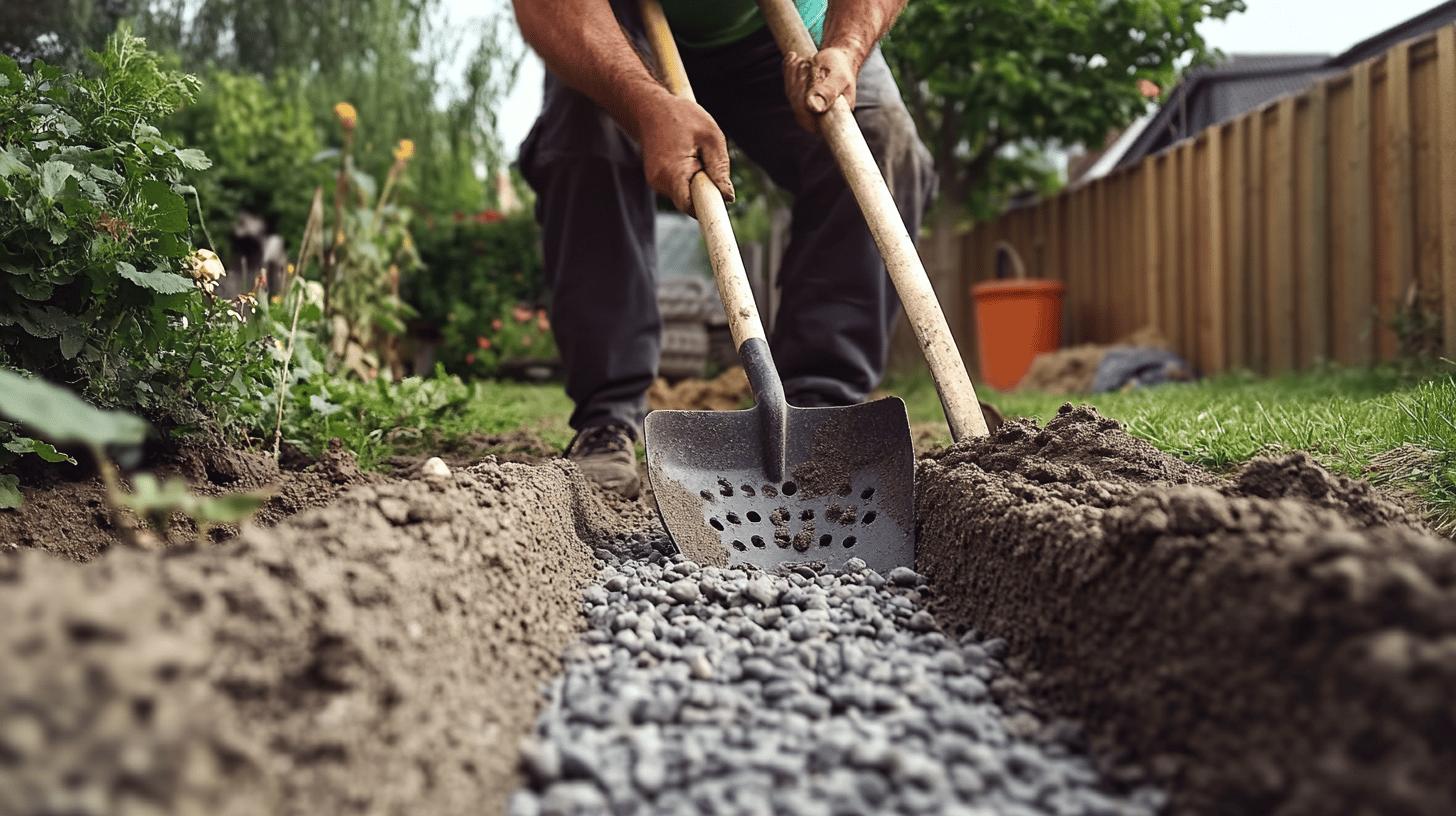

Installing a French Drain
- Plan and Mark: Identify the area where water accumulates and plan the drain path. Mark the trench line using stakes and string.
- Dig the Trench: Dig a trench about 18 inches deep and 12 inches wide along the marked line. Ensure a slight slope (1 inch per 8 feet) away from the foundation.
- Add Gravel: Lay about 3 inches of gravel at the bottom of the trench.
- Place the Pipe: Lay a perforated pipe on the gravel bed with the holes facing down.
- Cover with Gravel: Fill the trench with gravel up to a few inches below the surface.
- Cover with Fabric: Wrap the remaining gravel and pipe with landscape fabric to prevent soil from clogging the pipe.
- Backfill: Cover the fabric with soil and sod to blend with the surrounding landscape.
Tools Required: Shovel, stakes, string, perforated pipe, landscape fabric, gravel.
Installation Time: 1-2 days depending on the trench length and soil conditions.
Installing Surface Drains
- Identify Locations: Determine where water pools and plan the placement of grates and catch basins.
- Dig Holes: Dig holes for the catch basins at the lowest points and trenches for connecting pipes.
- Install Catch Basins: Place the catch basins in the holes and connect them with PVC pipes.
- Set Grates: Install grates over the catch basins.
- Backfill: Cover the trenches and holes with soil and compact it firmly.
Tools Required: Shovel, PVC pipes, catch basins, grates.
Installation Time: 1-2 days depending on the number of basins and trench length.
Installing Trench Drains
- Mark and Dig: Mark the trench path and dig a trench about 6 inches wide and 8 inches deep.
- Install the Drain: Place the trench drain channel in the trench, ensuring a slight slope.
- Secure the Drain: Anchor the drain channel using rebar stakes.
- Connect to Outlet: Attach the drain to an outlet pipe leading to a safe discharge area.
- Cover with Grate: Place the removable grate over the trench drain.
- Backfill: Fill the trench sides with soil or concrete for stability.
Tools Required: Shovel, rebar stakes, trench drain, outlet pipe, grate.
Installation Time: 1-2 days depending on trench length.
Installing Dry Wells
- Dig the Well: Dig a hole about 3 feet deep and 2 feet in diameter.
- Add Porous Material: Fill the hole with gravel or another porous material.
- Connect Pipes: Attach a perforated pipe to the dry well for water entry.
- Cover: Place fabric over the gravel to prevent soil entry.
- Backfill: Cover with soil and sod.
Tools Required: Shovel, perforated pipe, gravel, landscape fabric.
Installation Time: 1 day.
Installing Gutter Systems
- Extend Downspouts: Attach downspout extensions to direct water away from the house.
- Lay Drainage Pipes: Lay PVC pipes from the downspouts to a safe discharge area.
- Secure Connections: Ensure all connections are tight to prevent leaks.
- Cover and Conceal: Bury the pipes and cover with soil and sod.
Tools Required: Downspout extensions, PVC pipes, connectors, shovel.
Installation Time: A few hours.
Installing these drainage systems correctly can keep your property safe by managing water flow effectively.
Costs of Exterior Drainage Systems
Knowing the costs of exterior drainage systems is important for planning your budget. Prices can vary based on the system’s complexity, materials, and installation needs.
- French Drains: $1,000 – $5,000
- Surface Drains: $500 – $3,000
- Gutter Systems: $1,000 – $2,500
- Downspout Extensions: $10 – $50
Several factors affect the cost of exterior drainage systems. First, the complexity of the project matters; a more complicated system with multiple parts will cost more. The materials you choose also play a role. Going for high-quality, durable materials might raise your initial costs, but they can save you money in the long run by reducing maintenance and lasting longer.
Labor costs are another factor. While DIY might seem cheaper, hiring pros ensures everything is installed correctly, lowering the chance of future problems. Professionals know local codes and often provide warranties, making the higher upfront cost worth it. Investing in a properly installed drainage system can prevent expensive water damage and help keep your property value intact, saving you money and stress later on.
Common Exterior Drainage Problems and Solutions
Keeping your drainage system in good shape is essential for protecting your property from water damage. Here are some common problems and their solutions:
Hydrostatic Pressure
Hydrostatic pressure happens when water collects around your foundation. This pressure can cause water to leak through basement walls, leading to structural damage and mold growth. To relieve hydrostatic pressure:
- Install a French Drain: This helps divert water away from the foundation.
- Use a Sump Pump: Installing a sump pump can remove water that accumulates under the foundation.
- Waterproof the Foundation: Applying a waterproof coating to the exterior walls prevents water infiltration.
Surface Water Issues
Surface water can create lateral pressure against foundation walls, resulting in cracks and leaks. It can also erode landscaping and hardscaping. Here are some solutions:
- Install Surface Drains: These collect and redirect water away from problem areas.
- Grading: Ensure the ground slopes away from the foundation to direct water away.
- Erosion Control: Use erosion control fabrics, retaining walls, or ground cover plants to stabilize soil.
Clogged Drains
Tree roots can clog drain tile systems, and debris can block surface drains and downspouts. Regular maintenance is key to preventing clogs and keeping everything working well. To clear clogged drains:
- Root Barriers: Install root barriers to prevent tree roots from infiltrating drainage systems.
- Regular Cleaning: Clean out gutters, downspouts, and surface drains regularly to remove debris.
- Professional Inspection: Have a professional inspect your drainage system periodically to identify and address blockages.
Poor Slope
If the slope around your property is too flat, water can pool around the foundation instead of draining away. A proper slope is crucial for good drainage. To fix a poor slope:
- Regrade the Yard: Adjust the soil grade to ensure a slope of at least 1 inch per foot away from the house.
- Install Swales: These shallow ditches help direct water to appropriate drainage areas.
- Use Retaining Walls: In areas with significant elevation changes, retaining walls help manage water flow and prevent erosion.
Benefits of Professional Exterior Drainage System Installation
Getting professionals to install your exterior drainage system is key to making sure it works well and lasts a long time. Experts ensure everything is installed correctly, reducing the chances of problems down the road. They know how to handle utilities and other challenges safely, so your existing structures won’t get damaged.
- Proper installation
- Safe navigation around utilities
- Warranties and maintenance services
Another big benefit of hiring professionals is the warranties and regular maintenance they provide. These warranties give you peace of mind, knowing that if issues come up, they’ll be fixed without extra costs. Plus, contractors often offer regular maintenance to keep your drainage system running smoothly and prevent clogs and other common issues. Investing in professional installation and maintenance means your drainage system will be reliable and efficient for your property.
Final Words
Picking the right exterior drainage system can save you from a ton of water problems on your property. Options like French drains, surface drains, and gutter systems all have their benefits, and knowing what each one does can really improve how you manage water.
Installing these systems correctly is super important for them to work well and last a long time. While prices can differ, hiring pros ensures the job is done right and often comes with warranties and maintenance services.
Keeping your drainage system in good shape is key to protecting your home. With the right setup, you can safeguard your investment and enjoy a stress-free living space.
FAQ
What is an exterior drainage system?
An exterior drainage system collects and redirects water away from your property’s foundation, preventing water damage and soil erosion.
How much does an exterior foundation drain cost?
The cost of installing an exterior foundation drain ranges from $1,000 to $5,000, depending on project complexity, materials, and labor.
How do I build a drainage system in my yard?
To build a drainage system, plan a route for water flow, dig a trench, install drainage pipes or grates, and cover with gravel or soil. For complex systems, professional help is recommended.
What is an outside drain called?
An outside drain may be called a French drain, surface drain, trench drain, or gutter system, depending on its design and purpose.
